Graphic overlays, sometimes called nameplates, are thin layers of plastic or polymer material with printed symbols or graphics placed on top of an electronic device to identify the branding and functionality of the machine.
They play a vital role in making a powerful first impression for your company, as it is the first component of the equipment that a user will interact with. As they are the interface of the machine’s abilities, it’s critical that they are clear, durable, and can properly communicate with the machine’s driver.
In this article, we will discuss what are graphic overlays, customization options, and applications.

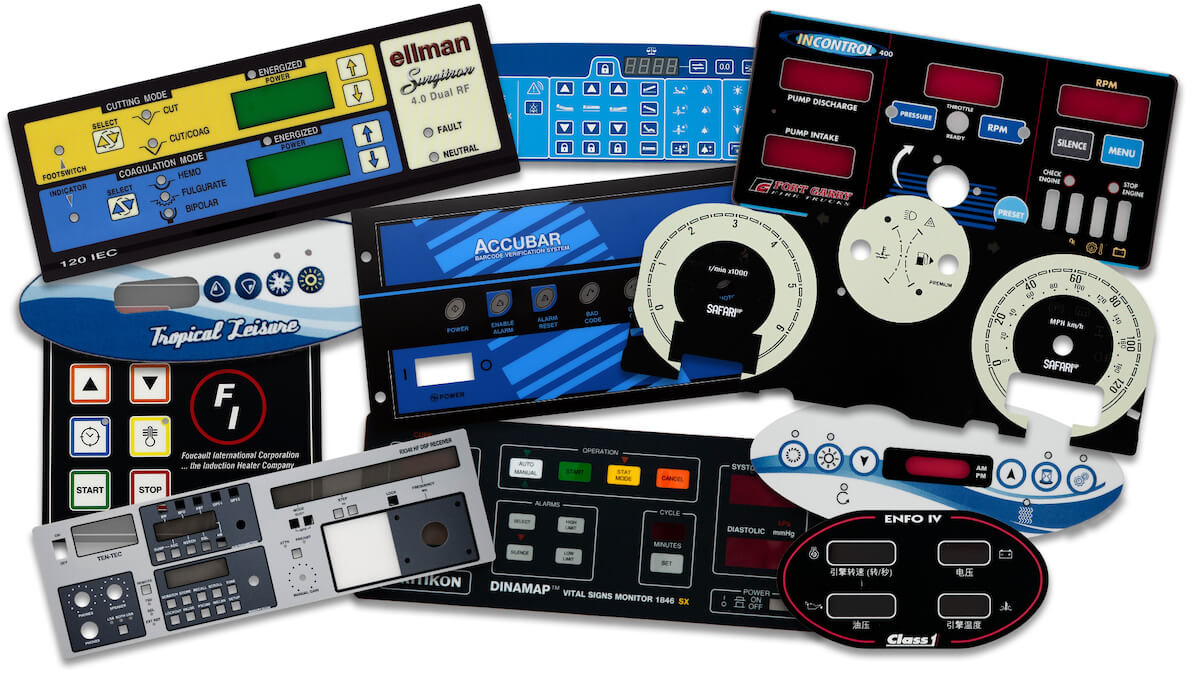

What are Graphic Overlays?
Electrical products all consist of a kind of interface. These include dials, buttons, and joysticks. However, without any text or graphics laid over the machine, the user would find it very difficult to use.
Graphic overlays are film sheets that display custom text and designs that are usually placed on the exterior layer of a product. They add a level of professionalism while also incorporating another layer of protection.
They provide important messages to the machine’s user, such as instructions, warnings, and brand messages, quickly and efficiently.
Read on to discover “what are graphic overlays” and discover how they can be customized to serve your needs.
Applications of Graphic Overlays
Graphic Overlays are the key to connecting a machine to its operator. They provide businesses with several benefits that ensure the proper performance of their machinery.
User Interface
As a company, you want to maximize the usability and user experience for your team when operating your tools. Graphic Overlays are the first step to the operation of your facility, as they often have the branding of the company as well as specific directions about how the machine works.
Designers focus on creating interfaces that are easy and pleasant to use, as the interaction between the user and machine should be simple and efficient.
Branding
The information used on your custom graphic overlay can be as simple as your company name and logo, strictly for branding purposes, or as complex as instructions and warnings.
You can add company contact information, UID or QR code, barcodes, product IDs, or serial numbers. Your company can also require a combination of these or unique details specific to your brand.
Durability
Graphic overlays are in countless settings, from indoors and outdoors to sterile environments. As such, a key part of the production and operation of your facility, you want to make sure that you can depend on your graphic overlays to withstand the conditions of your facility.
For this reason, there are a variety of features and finishes to ensure your graphic overlay continues to do its job.
5 Common Mistakes When Designing a Graphic Overlay
Creating an effective graphic overlay requires more than just aesthetic appeal; it’s about functionality, user experience, and durability. Whether you’re designing for industrial machinery or medical devices, overlooking key design principles can result in overlays that wear quickly, confuse users, or fail in critical conditions.
Here are five common mistakes to avoid.
1. Using Low-Contrast Colors
Colors that look great on screen may not perform well in real-world settings. Low contrast between text and background can make labels hard to read, especially in low-light environments or for users with visual impairments.
Always test your design under different lighting conditions to ensure legibility.
2. Choosing The Wrong Adhesive
Adhesive choice is critical to ensuring the overlay bonds properly to the surface. When exposed to heat, chemicals, or moisture, using a generic adhesive could result in:
- Bubbling
- Peeling
- Equipment failure
Make sure the adhesive is tailored to your surface material and operating conditions
3. Not Testing Durability
Graphic overlays are often exposed to wear and tear, harsh cleaning agents, and repeated usage. Skipping durability testing can lead to:
- Premature fading
- Tearing
- Damage
Always test prototypes under realistic conditions to validate material selection and ink adhesion.
4. Ignoring Ergonomic Feedback
The user experience matters. Ignoring ergonomic input during the design phase can result in overlays that are uncomfortable or confusing to interact with. Buttons should be spaced appropriately, tactile feedback should be considered, and the overall layout should support ease of use.
5. Overlooking Lighting/Environment Factors
Some things that can impact overlay performance are:
- Ambient lighting
- UV exposure
- Humidity
- Temperature extremes
Using materials that degrade in sunlight or fail in humid environments can cause long-term issues. Consider all environmental factors during material selection and design to ensure longevity and performance.
Custom Graphic Overlays for Your Industry
You can find graphic overlays in different environments throughout all industries. Your facility and equipment may require materials that comply with specifications, certifications, or inspection procedures.
Our team will walk you through the steps and specific processes pertaining to your industry standards.
Industries That Need Graphic Overlays
Here’s a closer look at where and how graphic overlays are used in different industries.
Aerospace
Used in cockpit panels, control systems, and test equipment, graphic overlays in aerospace must meet strict durability and compliance standards, often with resistance to temperature extremes, UV exposure, and vibration.
Construction
Heavy-duty machinery like cranes, lifts, and earth-moving equipment relies on overlays to display operational instructions, safety warnings, and branding, often in rugged, outdoor conditions.
Fitness
In fitness equipment such as treadmills, bikes, and strength machines, overlays enhance user interaction through clear control interfaces, branding elements, and waterproof materials.
Manufacturing & Industrial
Production lines, CNC machines, and industrial controls require overlays that can withstand high temperatures, chemicals, and frequent use, while ensuring proper labeling of functions and safety protocols.
Medical & Dental
Equipment in the medical and dental fields requires overlays that are not only easy to clean and disinfect, but also meet FDA and ISO requirements. These overlays are often designed for precise touch control and clear readability.
Research Laboratories
Lab equipment overlays are designed for chemical resistance, cleanroom compliance, and precision interaction and are used on analyzers, incubators, and testing machinery.
Transportation
Vehicles and transit systems, from buses to trains to specialty service vehicles, use graphic overlays in dashboards, control panels, and infotainment systems. These overlays must perform in varying light and temperature conditions.
Agriculture
Overlays on tractors, irrigation controls, and harvesting machines must resist dust, UV rays, and moisture while remaining legible and functional in outdoor environments.
Consumer Products
From home appliances to smart gadgets, overlays provide intuitive controls and product branding that elevate user experience and reinforce brand identity.
Food Service
In restaurants, cafeterias, and vending systems, overlays need to be easy to clean, resist moisture, and withstand frequent use, while clearly displaying controls and instructions.
Marine
Used in boats, ships, and marine instrumentation, overlays must be waterproof, salt-resistant, and readable under sunlight and glare.
Military
Overlays for military applications must meet rigorous specs, often including MIL-STD compliance, and function in extreme environments, from battlefield conditions to naval applications.
Retail
Point-of-sale systems, kiosks, and digital displays rely on overlays for branding, user interface controls, and durability against constant use in busy environments.
Conditions to Consider When Customizing Your Graphic Overlay
Before the development of your overlay, you’ll discuss the environment that it will live in, the chemicals and materials it will be exposed to, the lighting exposure, and the usage frequency. But you may be wondering why knowing the intricate details is so important to the development of your overlay.
Environment
When developing your custom graphic overlay, consider where it will live. Those used outdoors will require different materials than those indoors.
Your graphic overlay might need materials that will protect it from conditions such as extreme heat or wind, and harsh weather conditions. Outdoor use will require a material that can withstand the elements.
Chemicals
Something else to consider is whether or not your overlay will be exposed to cleaning products or industrial chemicals. If so, you’ll want to make sure that your overlay is completely resistant so that the materials do not decompose upon contact.
To make sure your product is protected, a hard coat will be applied to the design.
Lighting
We’re not only talking about the lights in your facility, but your graphic overlay might need to come in contact with UV rays. UV rays can easily damage the color of the graphic design and even yellow the protective coating if an incorrect finish is used.
It’s important to ensure that your custom graphic overlay stays as clear as it is when it leaves the facility.
Usage Frequency
In short, how many people will be touching the graphic overlay?
Depending on how often an operator uses the machine, they could have constant contact with the overlay. If it is a functional overlay (rather than purely decorative/branding), you want to make sure it won’t show signs of wear after a certain amount of usage.
Customizations & Options: Steps to Creating Your Graphic Overlay
Now that you’ve read about “what are graphic overlays” and their different applications, how can you customize your own?
Materials
Most high-resolution graphics are actually printed on the second surface, which is the backside of polyesters, polycarbonates, and acrylic, to protect the ink from the everyday conditions of your facility.
Polycarbonates
Polycarbonate is a versatile material that combines optical clarity with strong impact resistance. It’s ideal for both indoor and outdoor use, offering design flexibility and visual depth.
Key Features:
- Excellent optical clarity and depth effect
- Good for backlit applications and displays
- Impact-resistant and temperature stable
- Resists scratches, corrosion, chemicals, and water
- Perfect for high-traffic industrial, medical, or retail settings
- Design flexibilities
Best For:
- Equipment with displays or lighting
- Moderate to harsh environments with physical impact
- Applications requiring clean visuals and functional durability
- Suitable for extreme temperatures
Polyester
Polyester (PET) is highly durable and resistant to wear, chemicals, and UV exposure, making it the top choice for long-term use in harsh industrial or outdoor environments.
Key Features:
- Outstanding chemical and abrasion resistance
- Maintains clarity and structure under UV exposure
- Excellent dimensional stability
- High tear resistance
- Suitable for tactile features like embossed buttons
Best For:
- Commercial and industrial applications like outdoor machinery or heavy-duty industrial controls
- High-wear surfaces and frequent operator use
- Environments involving chemical cleaners or solvents
Aesthetics & Finishes
Now for even more details… the design, effects, and special features.
These details will bring in your company’s aesthetic and brand. Choose whether you want to protect your label with a rugged material finish, make your graphics stand out with a reflective surface finish, decide where to place your logo, and choose the sizing of the graphic overlay.
Additionally, think about whether you’d like to incorporate windows, cutouts, or embossing over the buttons.
Printing Effects
The method used to print your graphic overlay significantly impacts its appearance, durability, and cost.
There are two printing methods to choose from: digital printing and screen printing. Each has its own strengths depending on your application, design complexity, and production volume.
Digital Printing
Digital printing is ideal for high-resolution, full-color designs that include fine gradients, photo-quality images, or variable data. Because it prints directly from a digital file, this method offers:
- Fast turnaround times with minimal setup
- Lower upfront costs, especially for short runs or prototyping
- Unlimited color options without needing separate screens for each color
- Excellent detail and gradients and precision for intricate, modern designs
Digital printing is the preferred choice for brands that want to test new concepts, produce limited editions, or showcase vibrant, detailed visuals without the complexity of a traditional setup. It’s also ideal for overlays with frequent updates or changing information, such as QR codes or barcodes.
Screen Printing
Screen printing is the gold standard for durability and consistency in high-volume production. It involves applying ink through a fine mesh screen onto the substrate, one color at a time. This method offers:
- Exceptional color opacity and brightness
- Superior wear resistance for demanding environments
- Ability to print very fine details, with features as small as 0.005 inches
- Options for special effects, such as selective texturing, metallic inks, and tactile finishes
Screen printing is best suited for long production runs, overlays requiring color matching, or designs exposed to heavy use and harsh conditions. It also allows for precise control over ink thickness, which enhances durability and readability over time.
Custom Fabrication
No two overlays are exactly alike, and that’s why we offer custom fabrication services tailored to your specific requirements. Whether your design calls for intricate cutouts, complex shapes, or varying thicknesses, our advanced equipment ensures the highest level of precision and consistency.
Capabilities include:
- Laser and fiber optic cutting for clean, accurate edges
- Tight tolerances for overlays that fit perfectly over displays, buttons, or hardware
- Multi-layer constructions for added durability or multi-function overlays
- Custom thickness options to match your specific use case or ergonomics
Integration with tactile elements like membrane switches, LEDs, or circuit boards
From prototypes to full production runs, custom fabrication ensures that your overlay performs flawlessly in both function and fit.
Color Management
Color plays a vital role in brand recognition and user experience, so accuracy matters.
Our color management process includes:
- Pantone® (PMS) color matching to ensure visual consistency across all overlays
- Custom color formulations for proprietary or non-standard hues
- Color proofs and samples for your review before production begins
- Advanced digital and screen printing technology to reproduce rich, vibrant colors and gradients with sharp clarity
- Ongoing calibration to ensure consistency across batches and print runs
Whether you’re producing a one-time run or recurring orders over time, our color management process ensures every overlay looks exactly the way you intended, across every product, every time.
Embossing
Designing raised elements, also known as embossing, into your graphic overlays is a great way to make important features more visually prominent.
You will most commonly see dome and embossing for buttons or LEDs, but rim embossing and braille are also common. The type of embossing that is right for your application will depend on how your device will be used and also your personal preferences.
Dome
Creates a smooth, rounded, bubble-like shape, ideal for buttons that require tactile feedback. Dome embossing makes pressing intuitive, especially in control panels or switch-heavy environments.
Rim
Raises only the perimeter of the graphic, leaving the center flat. This style is perfect for drawing attention to icons or maintaining visibility of text or LEDs while adding a tactile edge.
Standard Pad Emboss
A flat-topped raised surface is typically used for simple button shapes. It provides clear boundaries and is often paired with screen or digital printing for added visual definition.
Braille Embossing
Offers ADA-compliant tactile navigation by adding raised Braille characters. This is essential for products that need to meet accessibility requirements or serve visually impaired users.
Windows & Cutouts
Windows and cutouts are a kind of selective texturing that creates the illusion of a separate window. You can choose from:
- Glossy
- Semi-gloss
- Antiglare
- Dead-front
- Translucent
- Frosted
You can even choose the color and tint.
Adhesive
A critical component, the adhesive ensures the overlay bonds securely to your device or surface. We use 3M-certified adhesives or your preferred brand to ensure performance in any environment.
Options Include:
- Permanent or removable adhesives
- High-tack for rough or low-energy surfaces
- Heat, UV, and chemical-resistant types
- Selective placement or full-coverage options
Lighting
Determine whether your overlay will require backlighting or external lighting. We support integration with:
- LED lighting for vibrant, energy-efficient illumination
- EL (Electroluminescent) panels for uniform lighting
- Fiber optic backlighting for selective lighting zones or indicator lights
These options are especially useful when designing dead-front panels or overlays with active display elements.
Surface Finishes
Polycarbonate and Polyester are the most popular finishes. However, you can also supply the material you prefer:
Velvet
A velvet finish offers a soft, matte appearance that reduces glare and fingerprints, making it ideal for environments with high ambient lighting or frequent handling.
- Provides a clean, professional look
- Enhances readability under direct light
- Hides scratches and smudges
- Ideal for medical, industrial, and consumer electronics
Textured
A textured finish adds a subtle tactile feel that not only improves grip but also increases resistance to wear and abrasion.
- Improves tactile feedback for controls
- Durable and rugged for demanding environments
- Commonly used in industrial machinery and outdoor equipment
Glossy
A glossy finish offers a smooth, polished surface that enhances the vibrancy and sharpness of printed graphics. It’s perfect for branding-focused overlays where visual appeal is key.
- High clarity and vibrant color presentation
- Easier to clean and wipe down
- Ideal for indoor applications and consumer-facing products
Reflective
Reflective finishes can make elements of your design, such as logos, icons, or safety indicators, stand out in low-light or dark environments. These are often used for overlays that require visibility in safety-critical or nighttime settings.
- Enhances visibility under poor lighting
- Adds a premium look to your product
- Useful for transportation, military, and emergency service equipment
Testing
Before any graphic overlay leaves the facility, it should undergo rigorous quality control testing to verify:
- Adhesion strength
- Resistance to environmental stress (heat, moisture, UV, chemicals)
- Print integrity
- Emboss performance
- Dimensional accuracy
This ensures your overlay performs reliably and meets all required specifications and industry standards, every single time.
